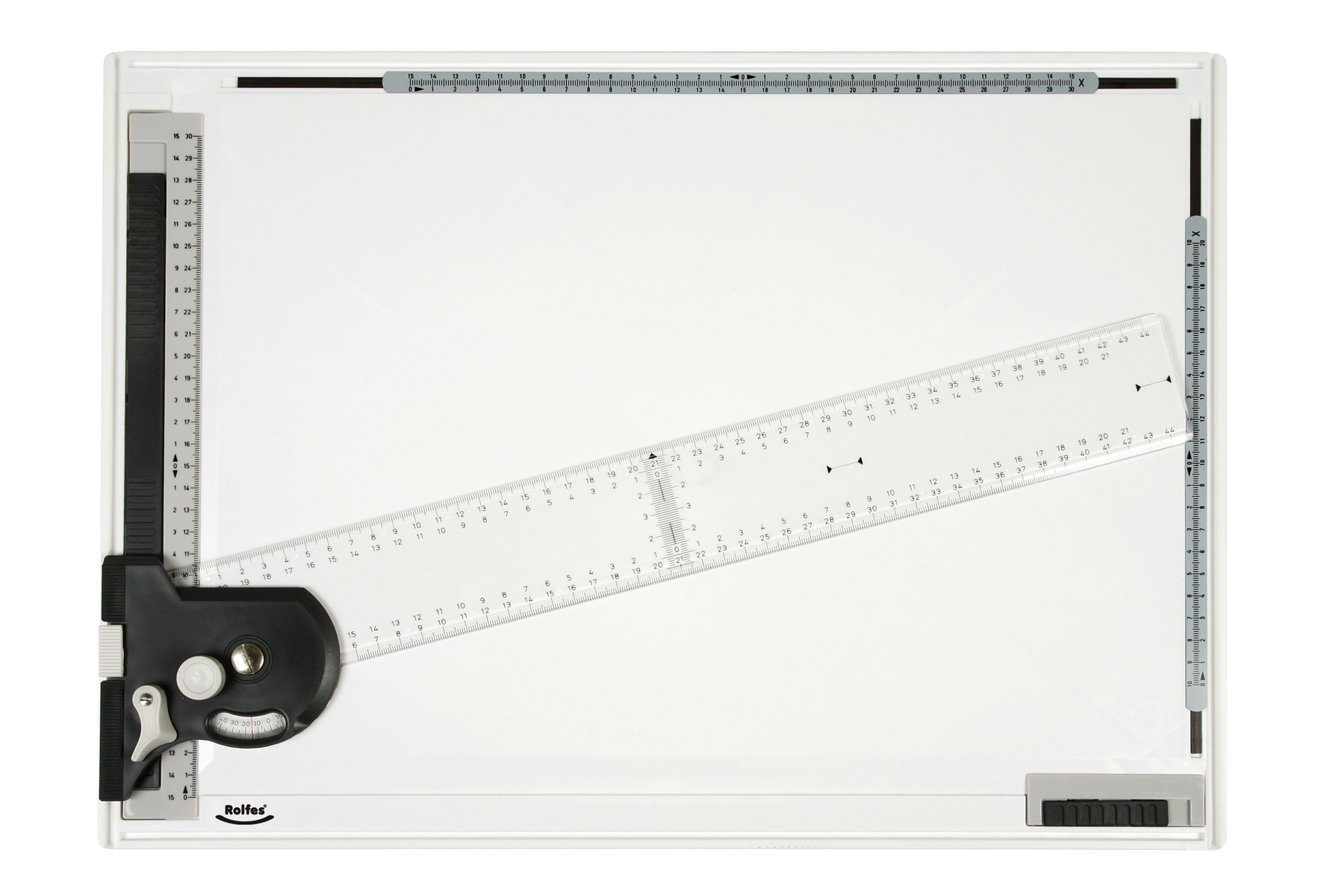

Rolfes Technical Drawing Board A3 MATRIX

Rolfes Tech Drawing Board A3 – MATRIX
Full-featured drawing board for speed, precision and ease of use.
For precise drawings and easy, comfortable working.
For sheet sizes up to 450 x 325 mm.
Magnetic clamp with scale.
Smooth, rigid surface for graphite and ink work. Parallel straightedge with grip area and STOP-and-GO button locking/unlocking action. Zero-maintenance bearings for consistent glide
Robust board of unbreakable, non-warping material.
Ergonomic design for easy, comfortable working.
The L-system straightedge design – allows drawing along the top edge of the straightedge right down to the bottom of the sheet, with full accuracy and stability.
Guide rails designed for permanently smooth, featherlight straightedge movement.

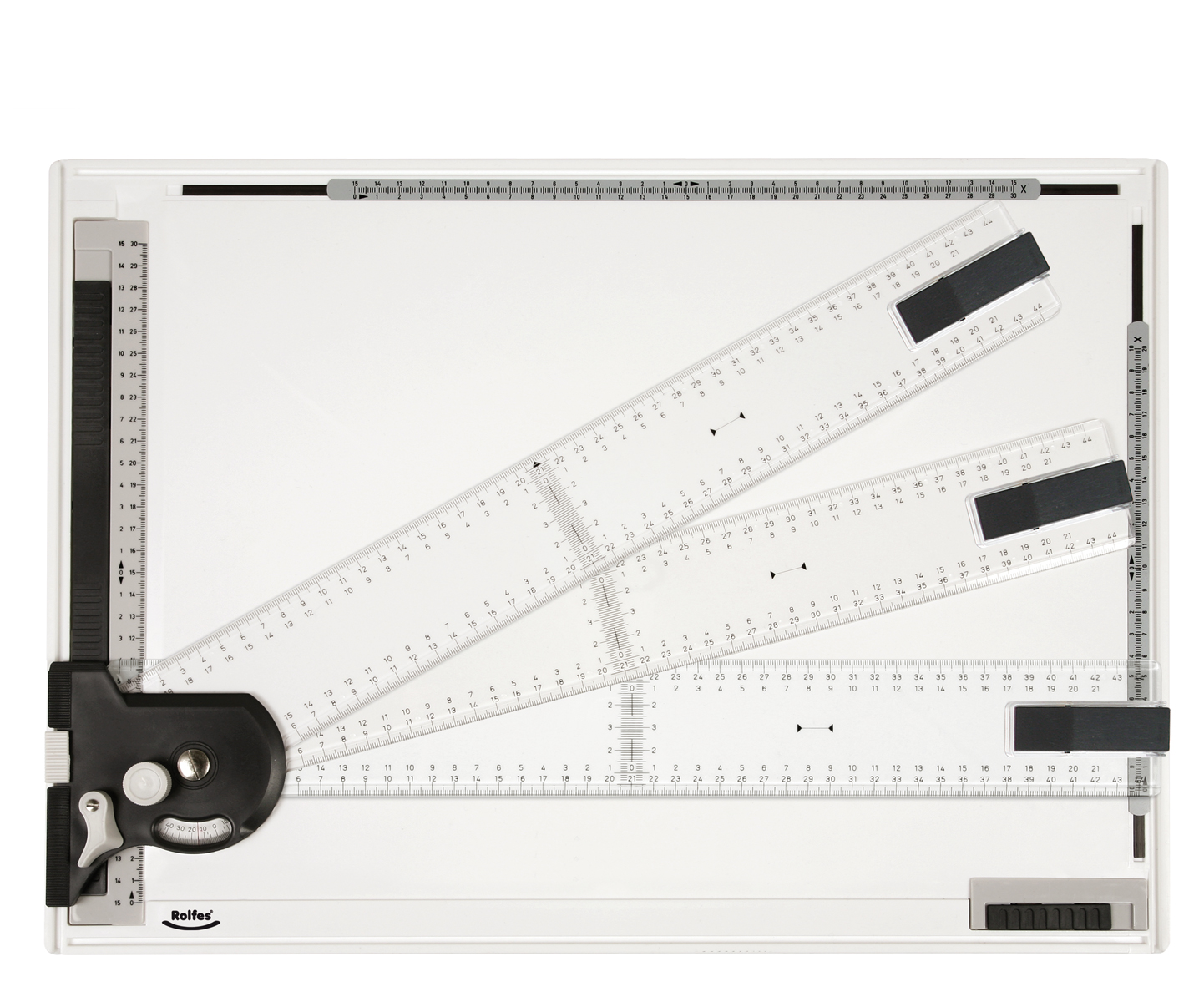

Comes complete with drawing head with automatic setting every 15° and locking of any angle in between, plus freeswing setting. Contra-rotating 0-90° scale, brake mechanism to lock in position on straightedge.
Use & Care
Use a light hand for construction lines; ink only once fully resolved.
Keep surfaces clean and dust-free for crisp lines.
Store tools in a dry place to avoid warping or ink clogging.
What’s in the box
1 x Technical Drawing Board complete with integral drawing head
